Technical Support
Part List

Twist-Lock clamp

to attach two post / corner post / beams to each other





Read more >







Item  IS-9339

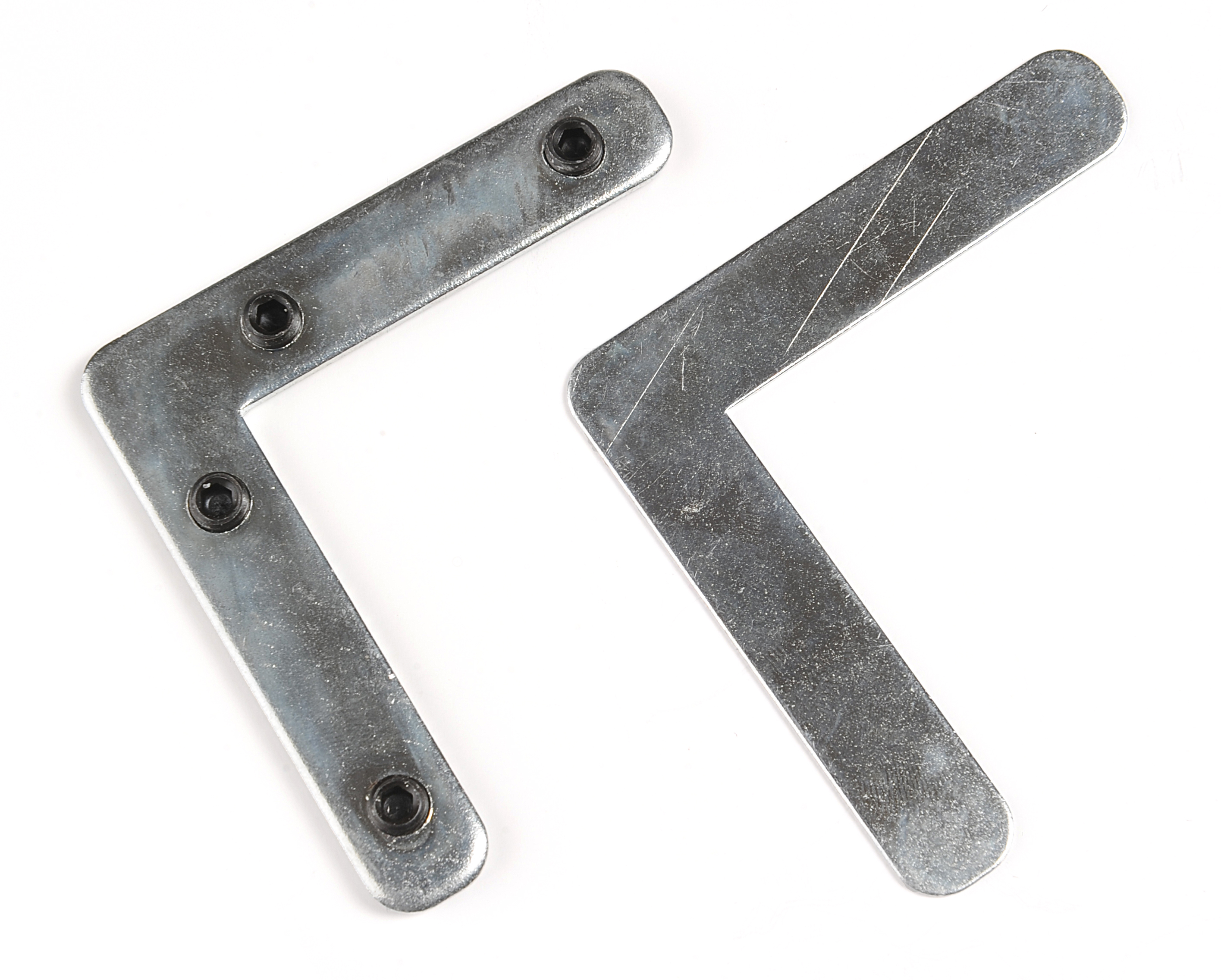

Screw Slot connector, 90°

1 kit

Total size: 65 x 65 mm

Weight: 45 grams

Item IS-9053

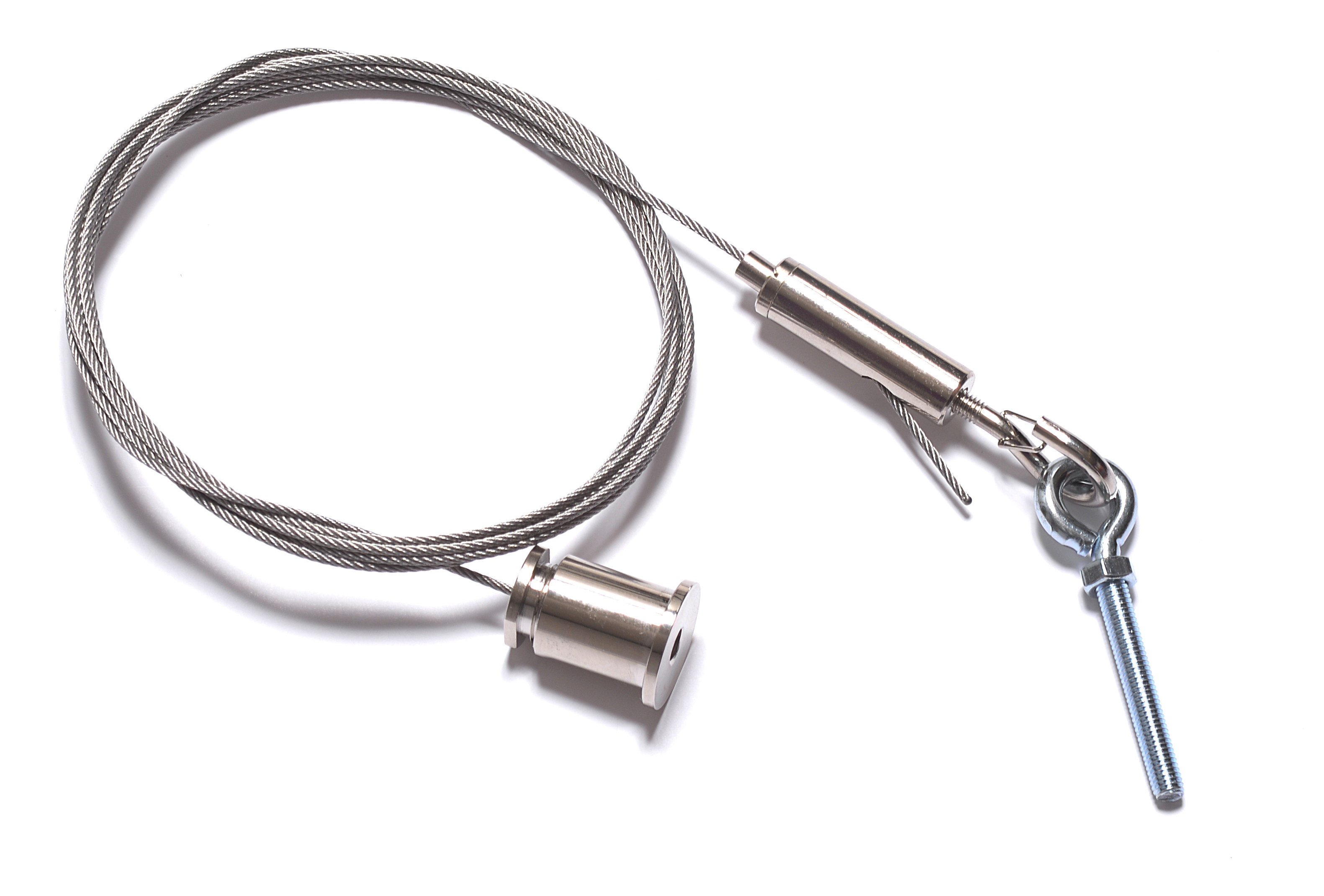

Ceiling mount

Complete with a ceiling mount, wire 2 metre, adjustable wire hook and frame hook.

Total size: 2 metre wire length

Weight: 70 grams

Max. load 18 kg.

Minimum 2 kit / frame



Item IS-9383

Screw Slot connector, straight

1 kit

Total size: 110 x 12 mm

Weight: 42 grams

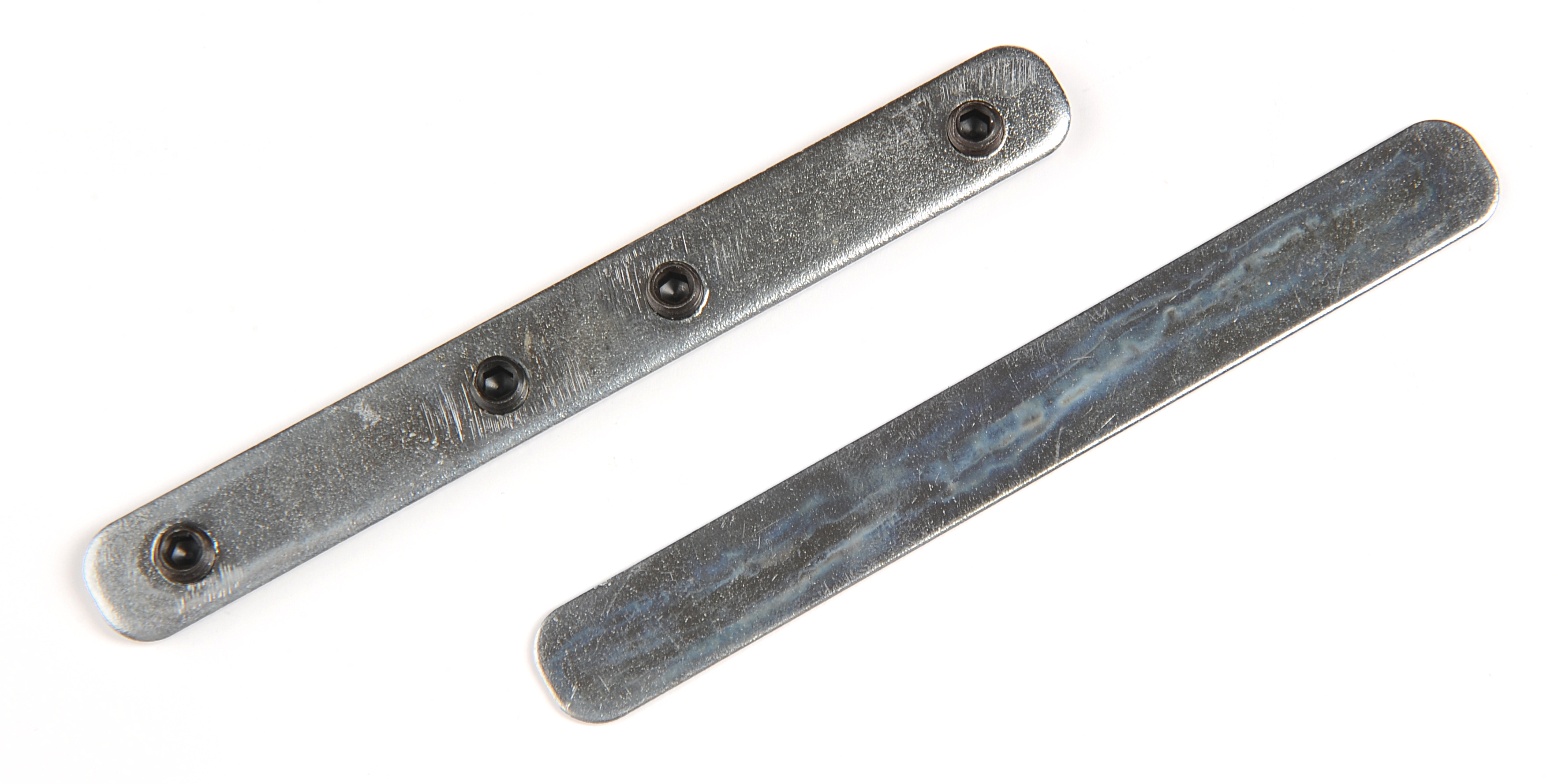

Item IS-9052

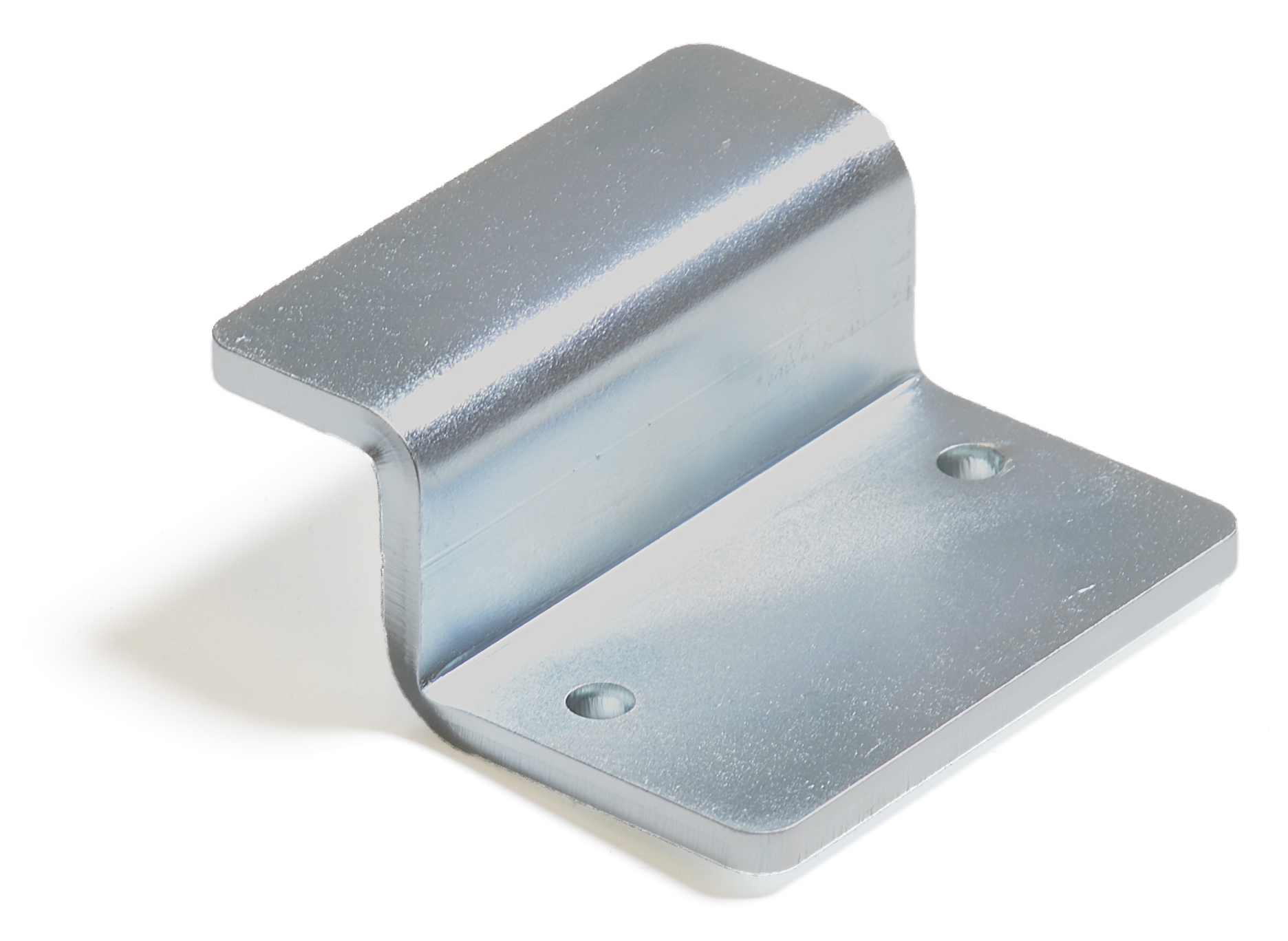

Wall mount support

to be mounted inside the frame in top and bottom of the profile (minimum 4 pcs.)

Total size:

Weight: 310 grams



Item IS-9384

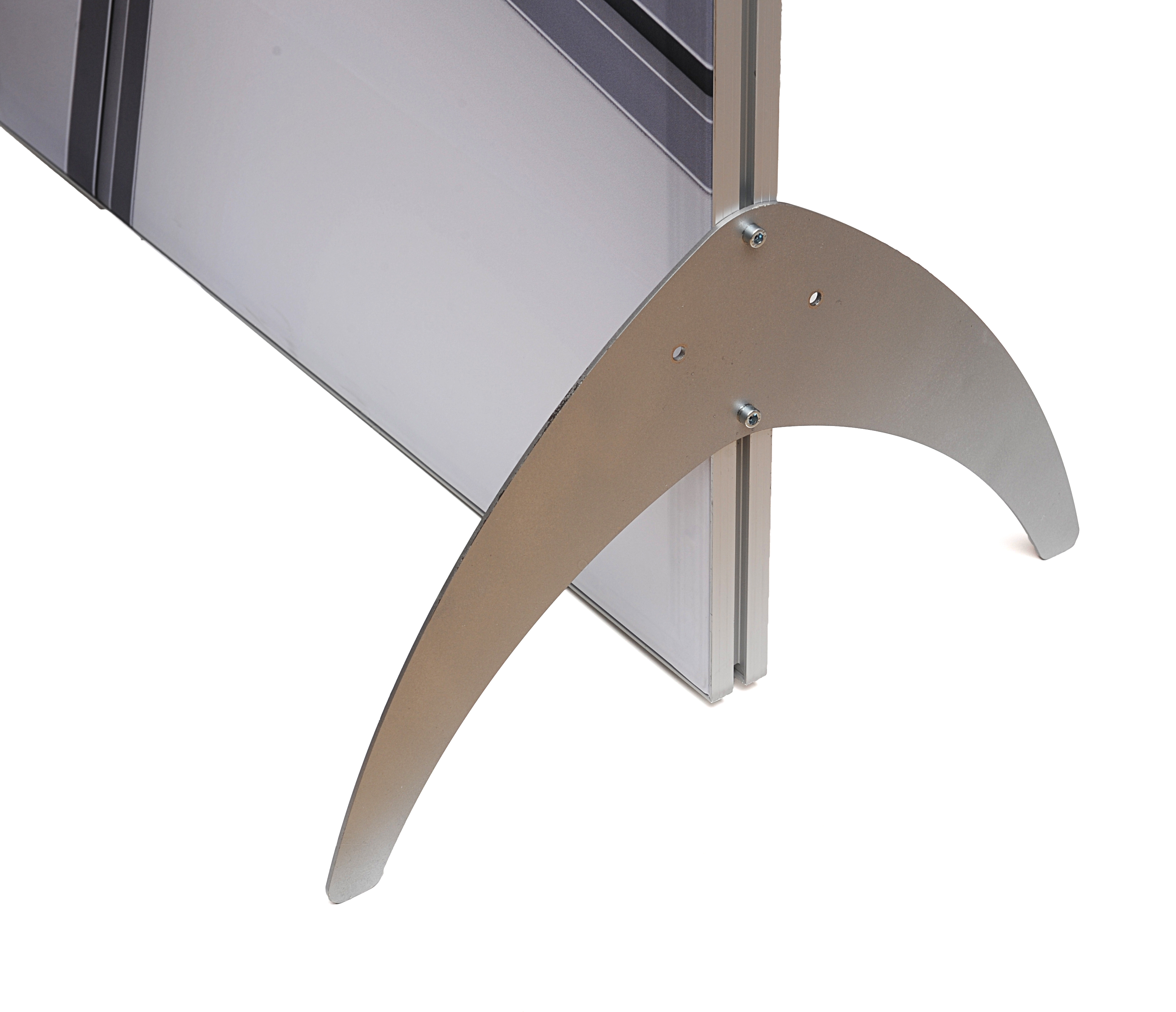

Arched side foot

for all standard and lightbox profile

Size:  500 (w) x 300 (h) x 3 (t) mm

Weight: 1150 grams



Item no.: IS-9342



PVC edge strip

to sew at the edge on the reverse of the fabric graphic panel.



Strip size:  9,5 x 2,7 mm x 200 m

Total size; 300 (dia) x 145 (w) mm

Weight: 6700 grams



Item IS-9067

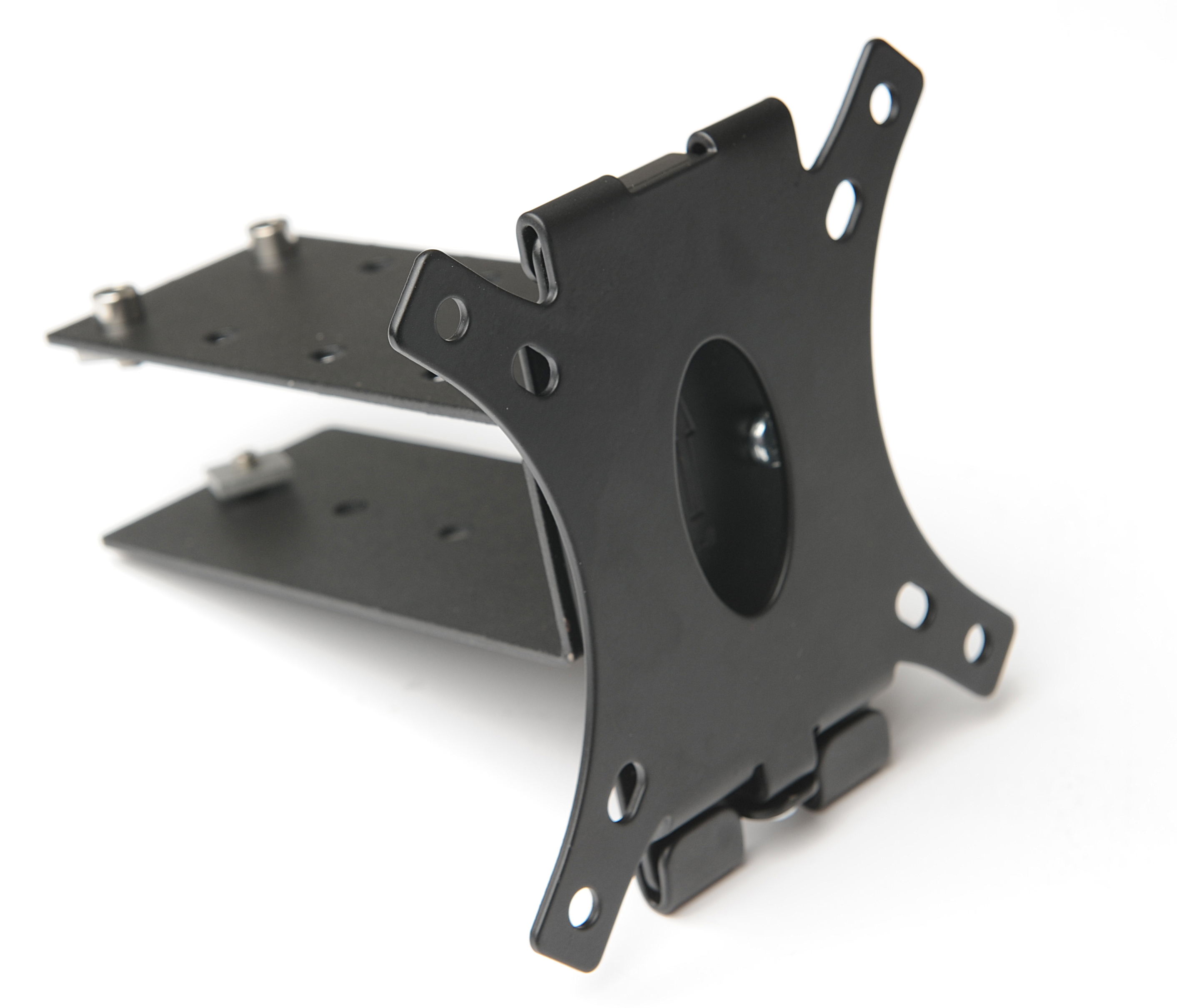

Media screen holder

To connect a screen at a post or straight or curved beam.



Size: VESA 75/100

Weight:



Item no.: IS-9004

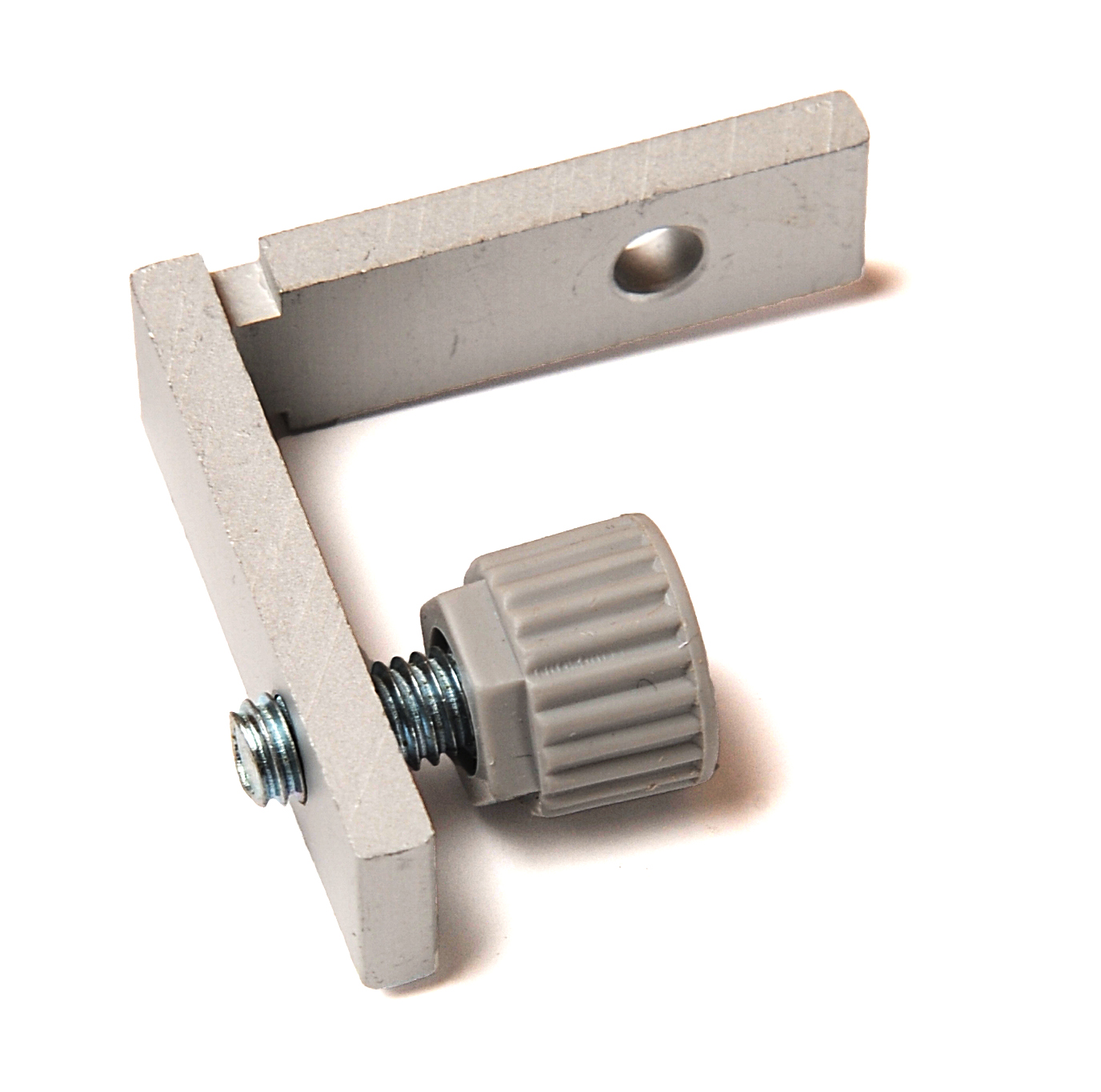

Support-Multi connector

with locking screw



Size: 40x40 mm

Weight: 15 grams



Item  IS-9001



Lightbox foot

Jag har arbetat med fotografering sedan barnsben, först analogt senare tid digitalt. Min starkaste sida är porträtt men jag jobbar mycket med produkt-fotograferingar till de trycksaker och hemsidor jag arbetar med.



Item no.: IS-9338

Size:

Weight:

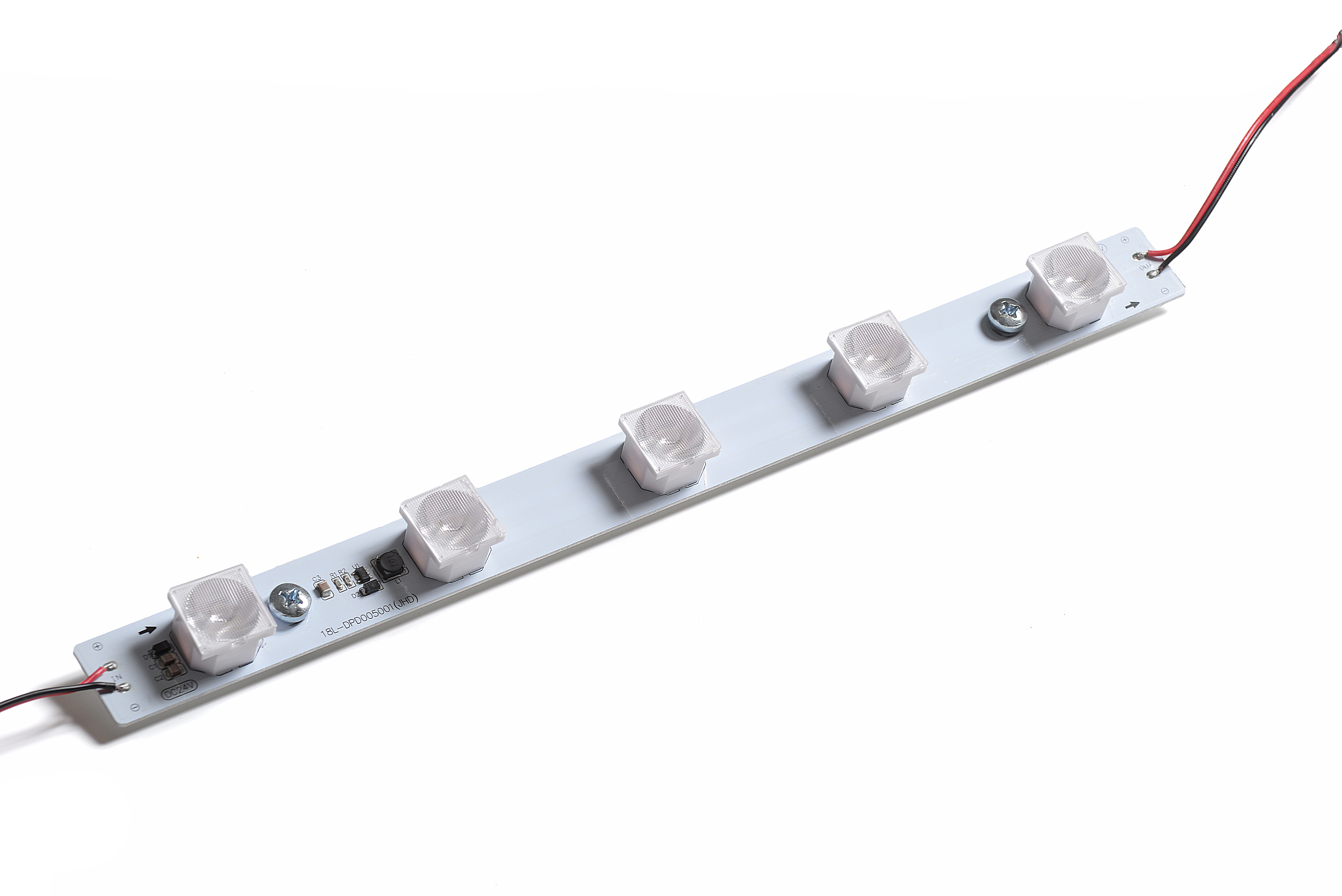

LED-bar for lightbox

incl. 2 twist nuts



Size: 360 (l) x 28 mm (w)

Power: 24V  / 15W (11W)

Colour temp: 7000-8000° K

900 lumen, IP33



Item IS-9380

Transformer, 24V / 200W

with connection cable

Input: 85-265V/AC

Output: 24V/DC, 200 W - 8,35A

Size: 240 (l) x 70 (w) x 40 (h) mm

IP67



Item IS-9395

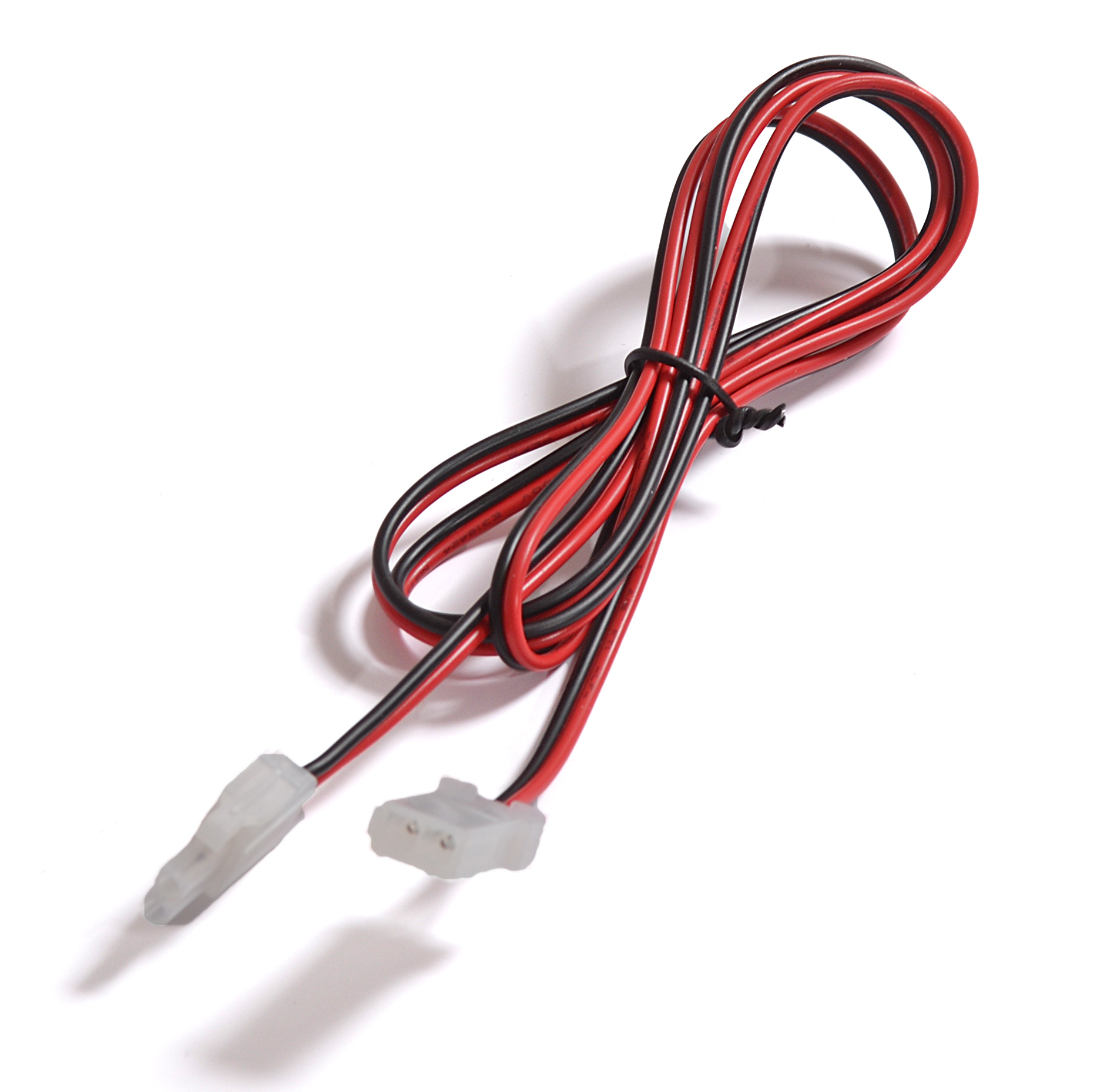

Extension cable

for LED-bar (white sockets)



Cable length: 1000 mm



Item IS-9382

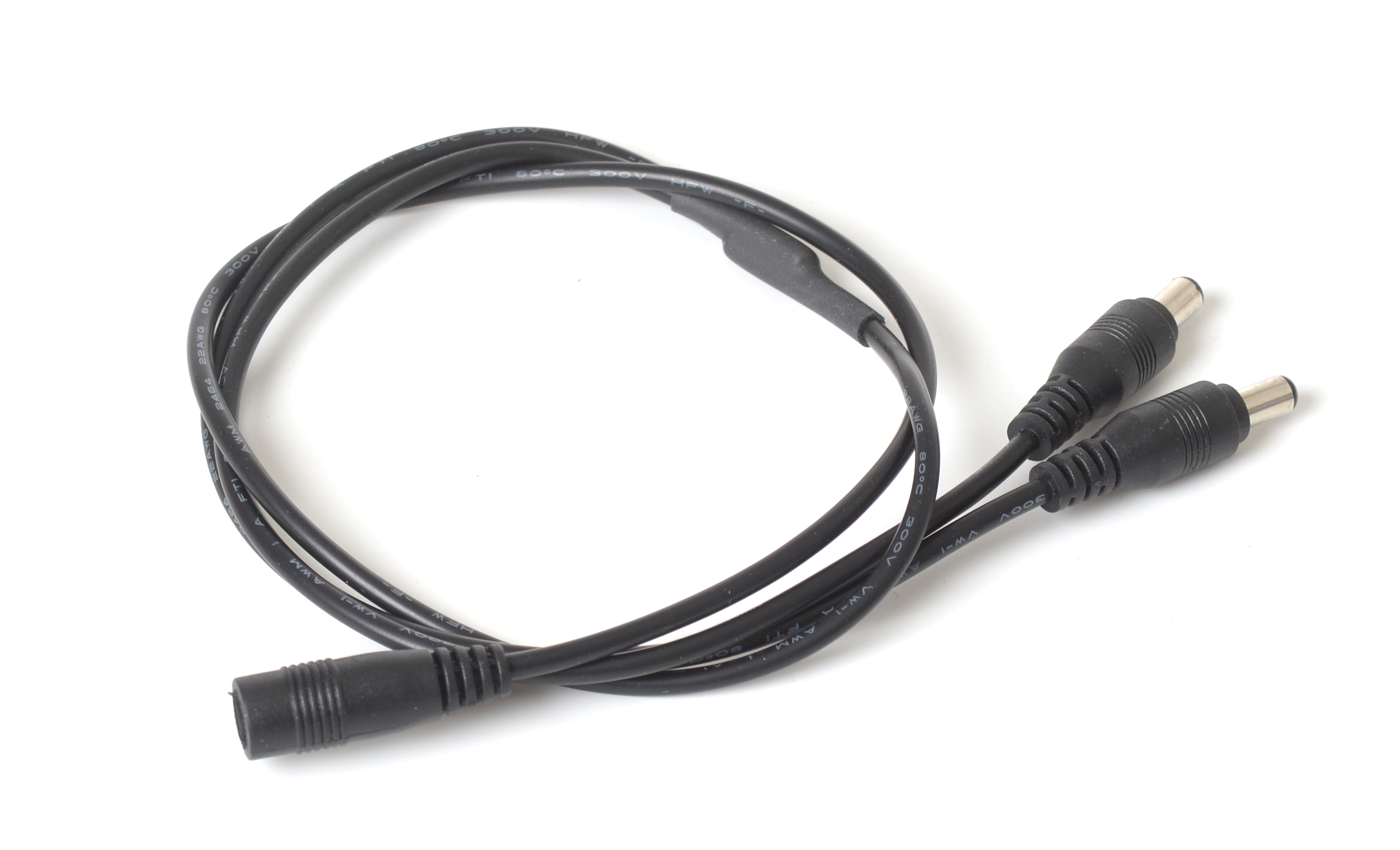

Y-extension cable

with contact in one end



Size: 1000 mm

IP33



Item IS-9387

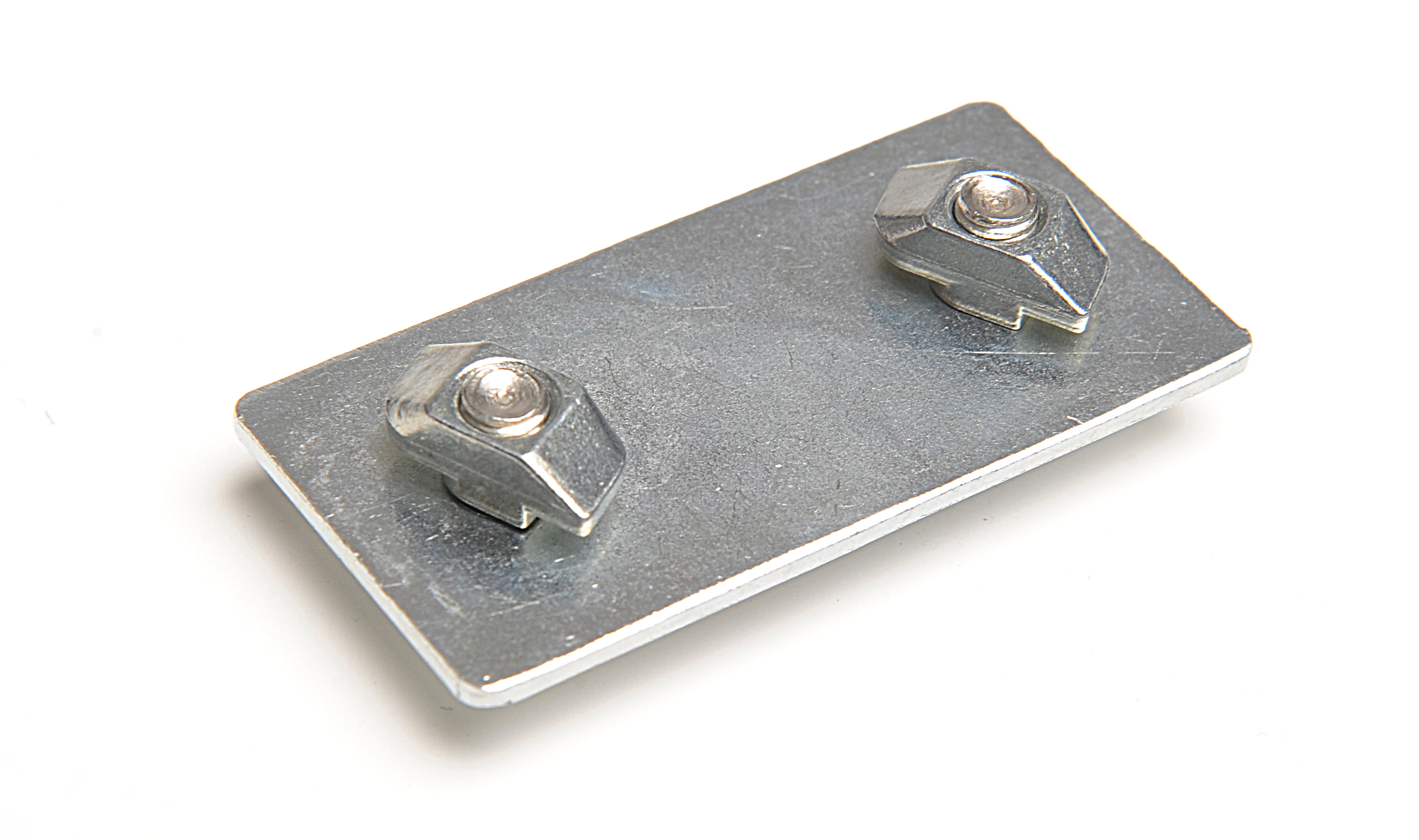

Screw connector, straight

Fabric - Fabric

Total size:  60 x 30 x 2 mm

Weight: 39 grams



Item IS-9306

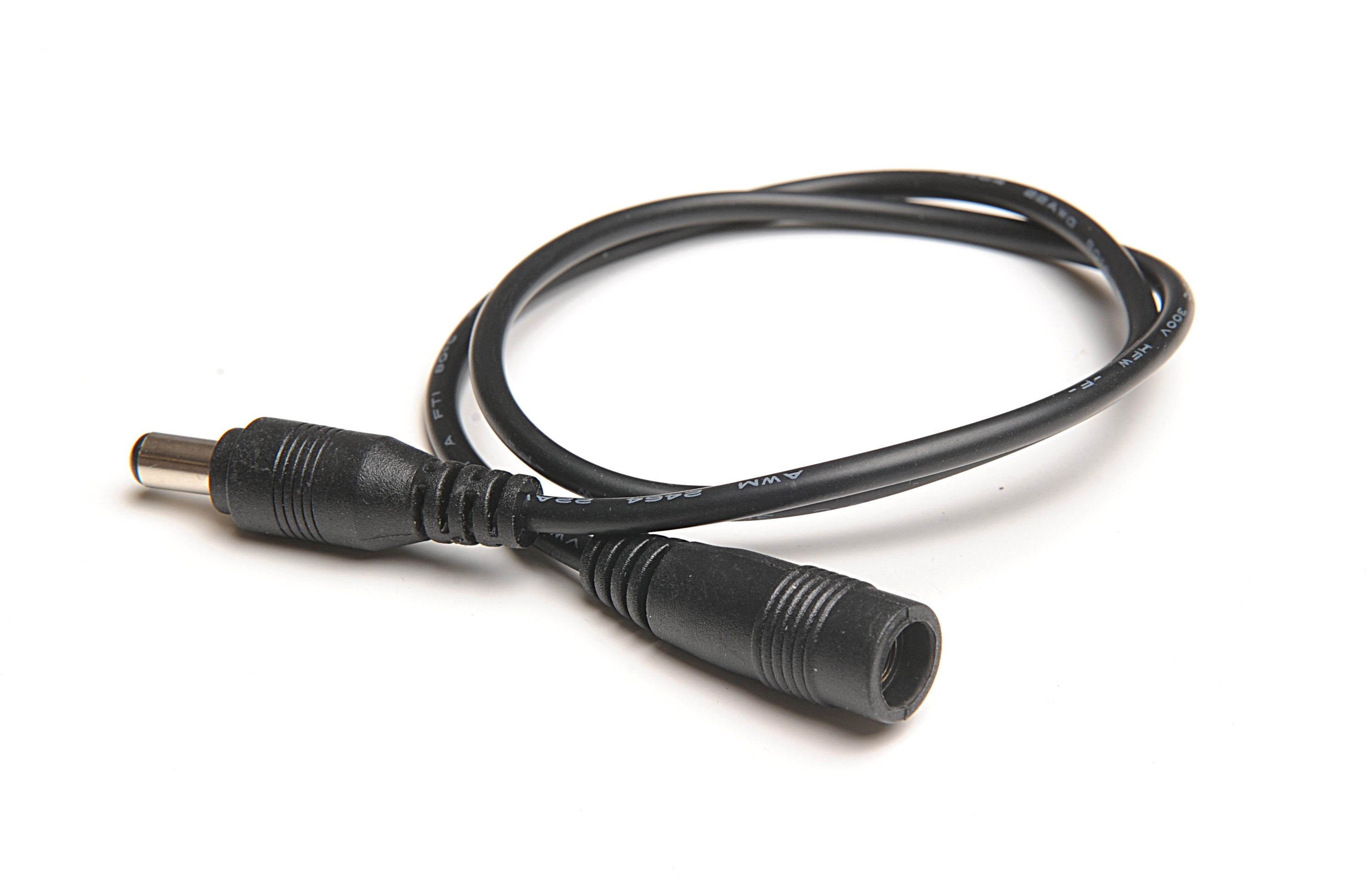

Extension cable

with DC contacts.

Cable length: 500 mm



Item IS-9337

Screw connector 90°

for 90° inside corner connection

Total size:  30 x 30 x 2 mm

Weight: 39 grams



Item IS-9613



Ceiling connector

Jag har arbetat med fotografering sedan barnsben, först analogt senare tid digitalt. Min starkaste sida är porträtt men jag jobbar mycket med produkt-fotograferingar till de trycksaker och hemsidor jag arbetar med.

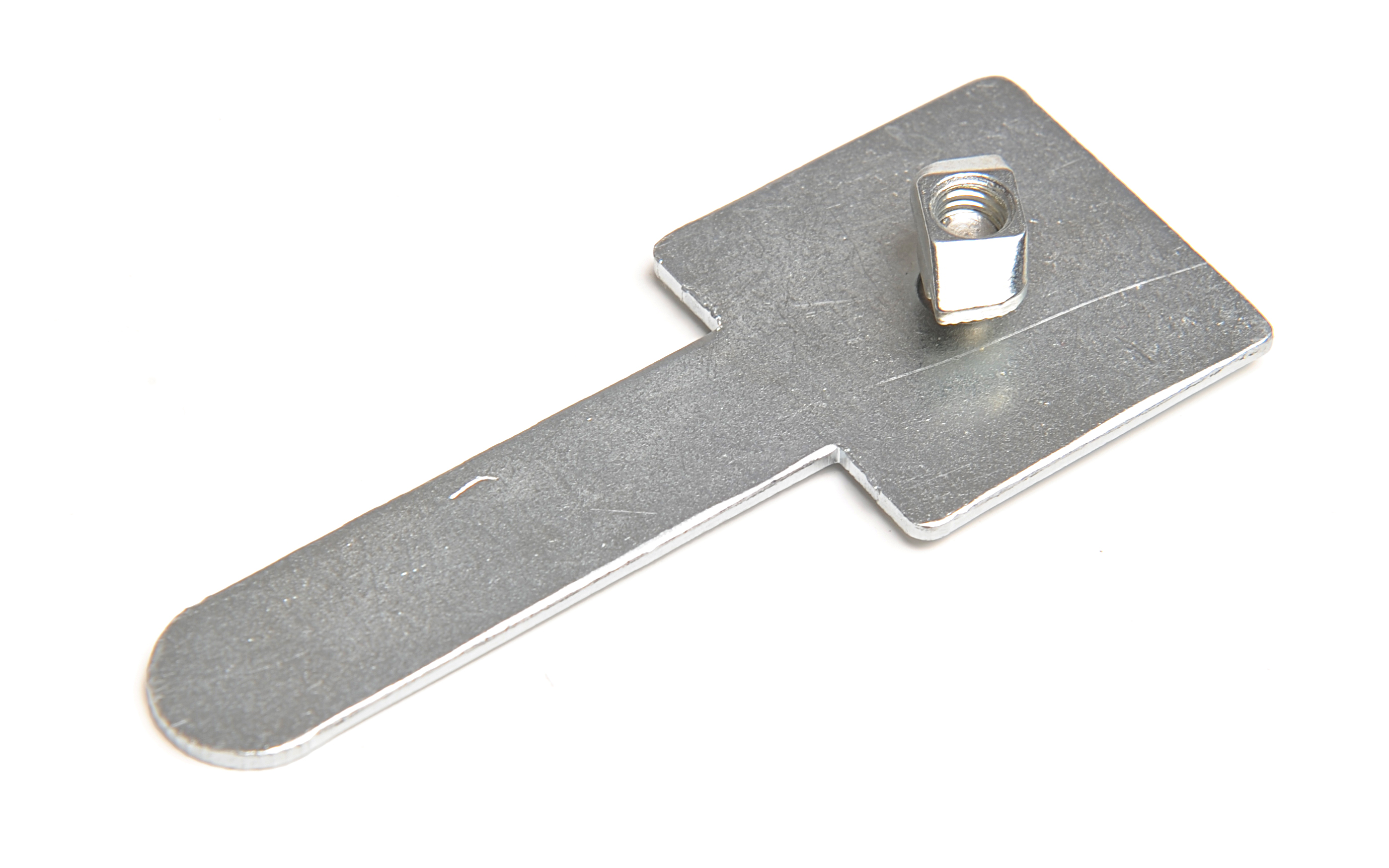

Item no.: IS-9307

Size:

Weight:

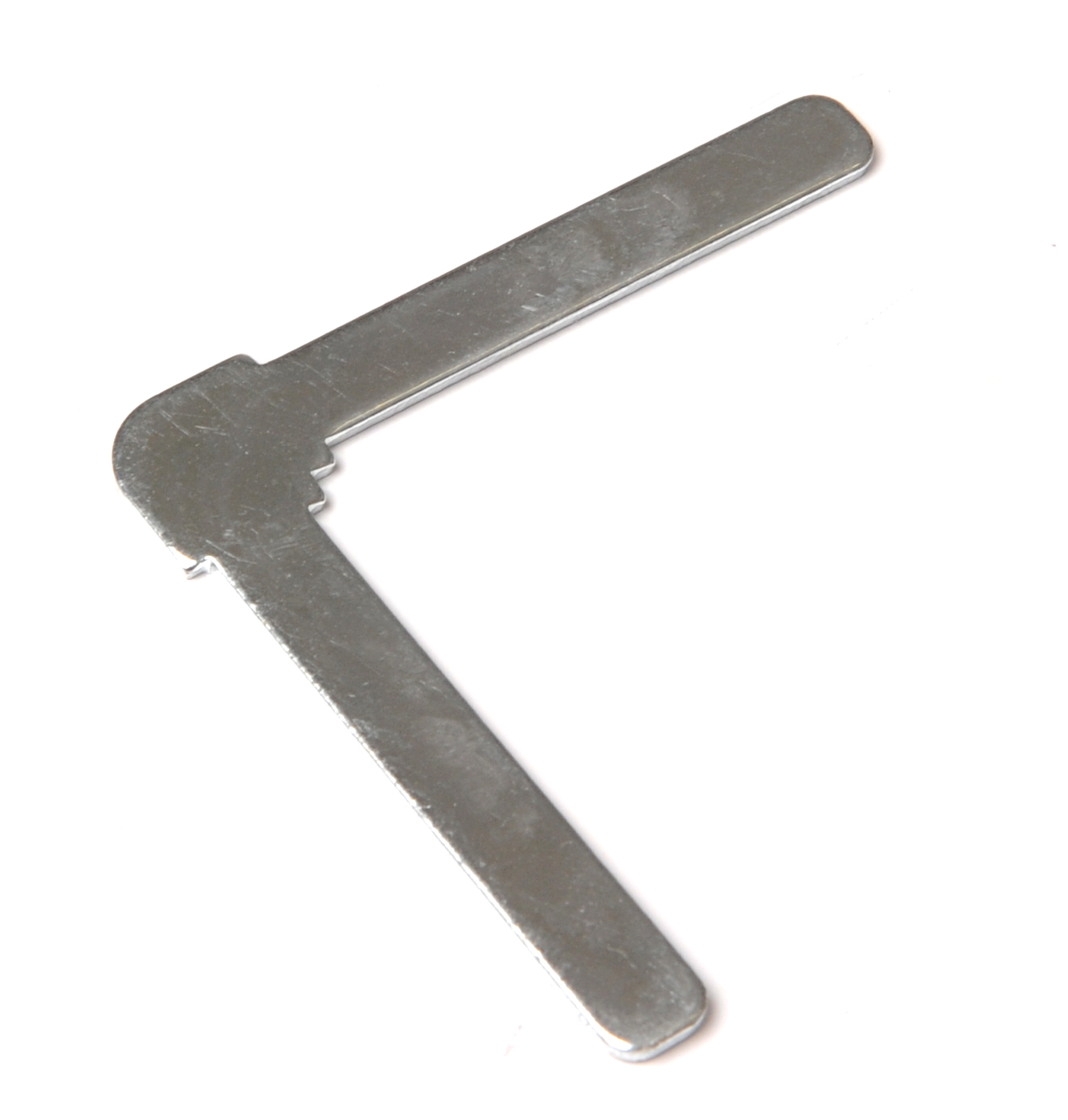

Fast slot connector, 90°

to be together with two Fast slot clamp



Size:   62 x 62 x 2 mm

Weight:  17 grams



Item no.: IS-9051



Asymmetric Fast slot

connector, straight

to be together with Fast slot clamp on one side and one side with screws



Size: 100 x 8,5 x 2 mm

Weight: 18 grams

Item IS-9069

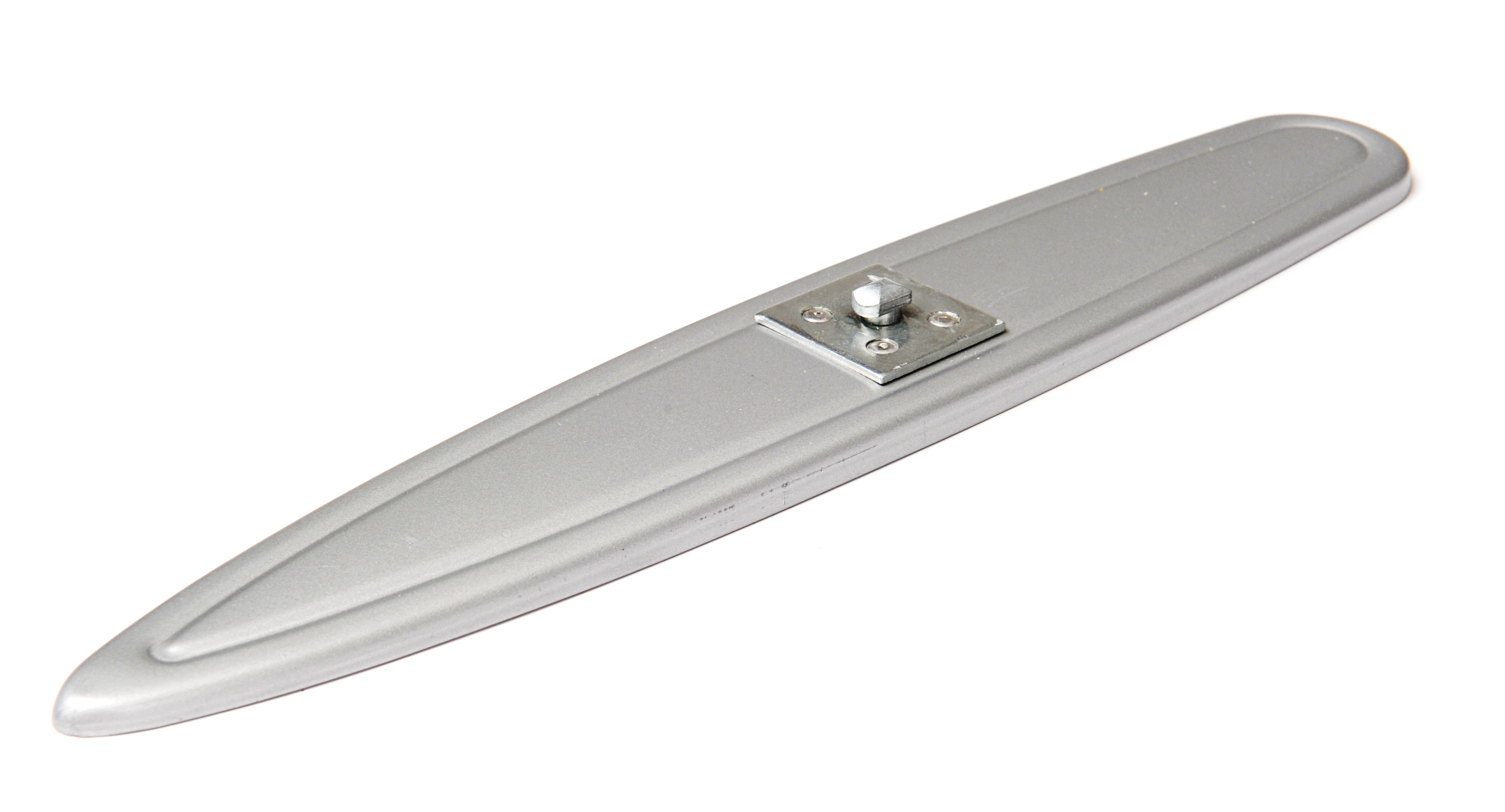

Twist-in foot



Size:  370 x 60 mm

Weight: 470 grams

Item IS-9060

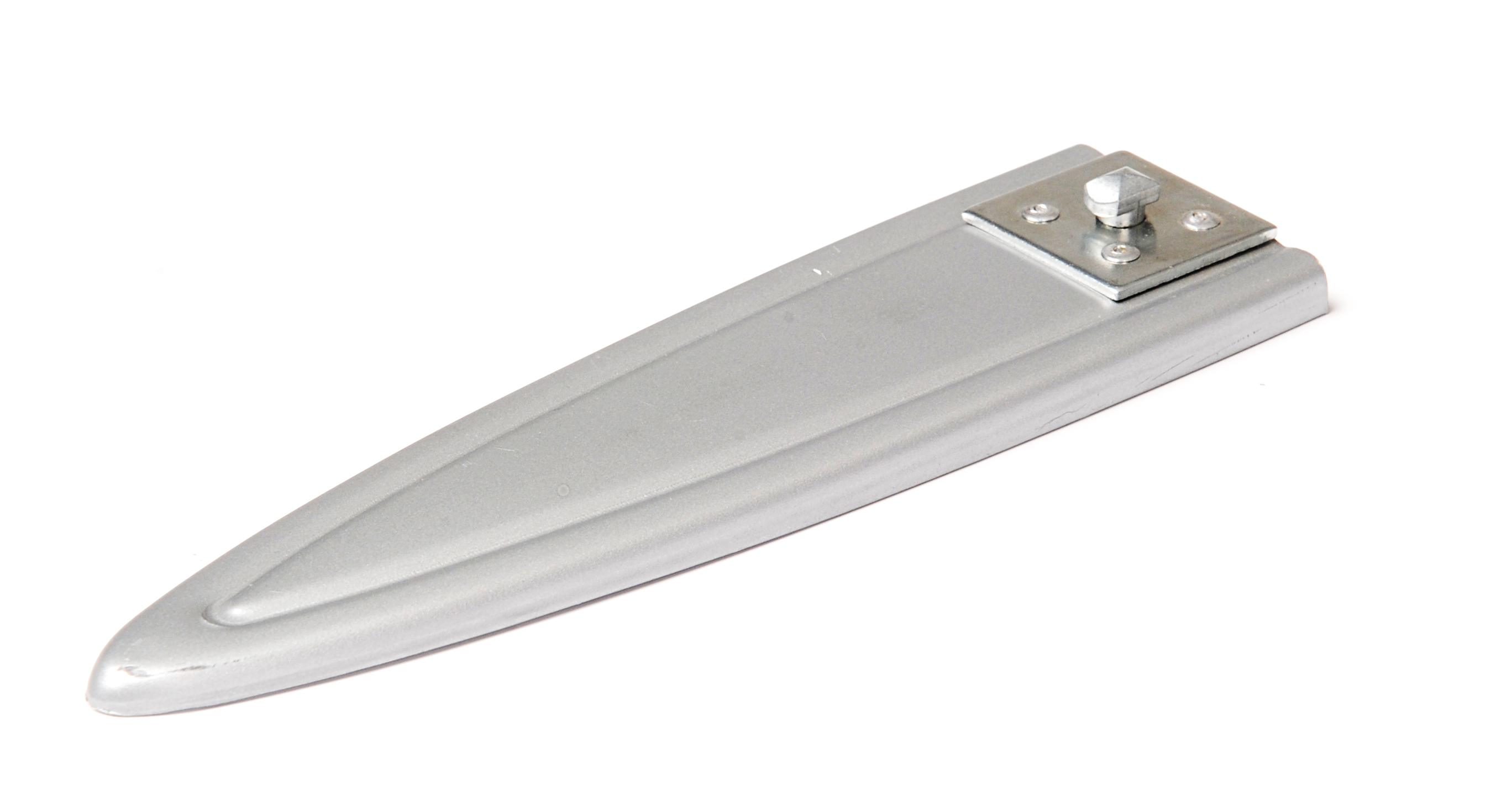

Twist-in half foot



Size:  220 x 60 mm

Weight: 285 grams

Item IS-9061

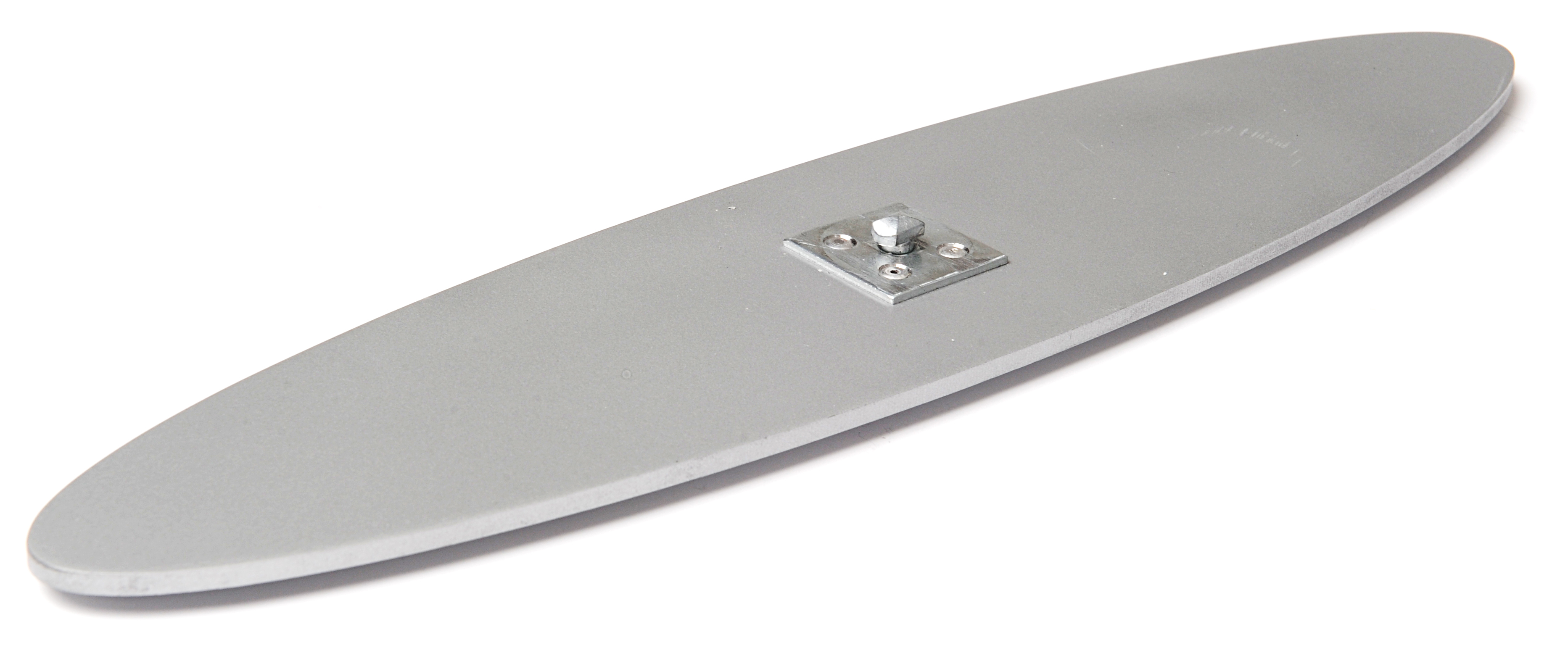

Twist-in foot, extra stable



Size:  450 x 100 mm

Weight: 1350 grams

Item IS-9063

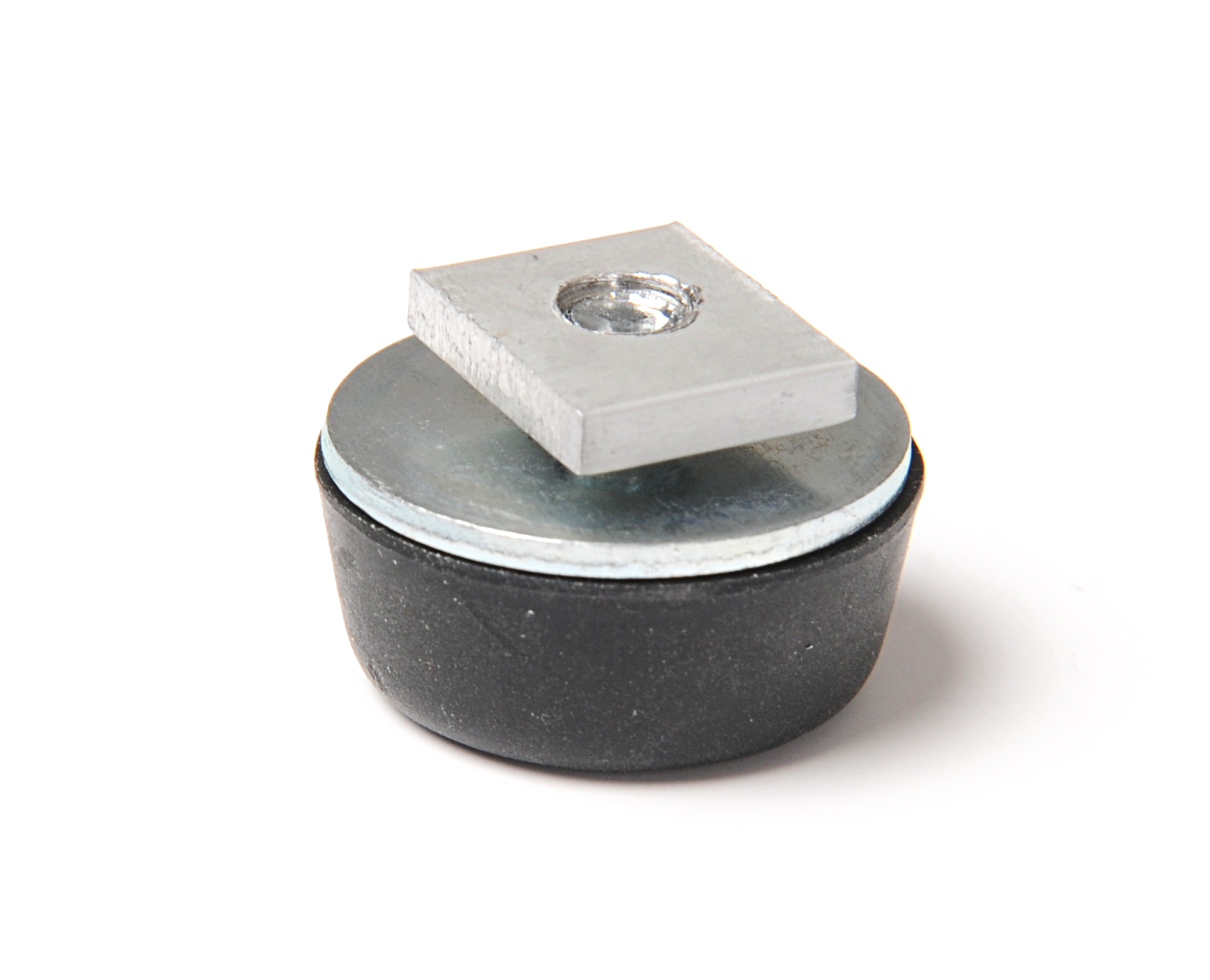

Support foot



Size:  Ø 25 x 12 (h) mm

Weight: xx grams

Item IS-9058

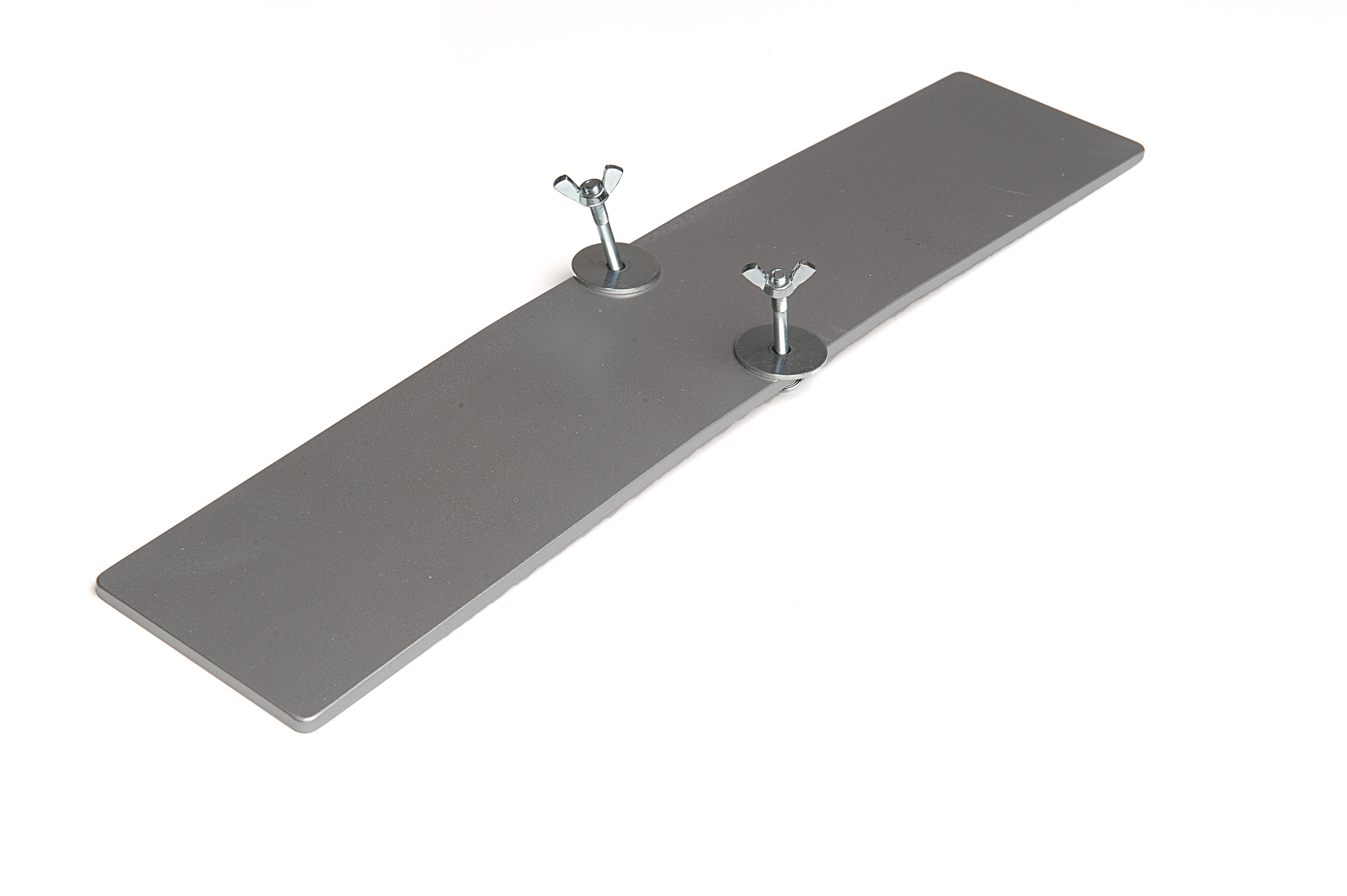

Foot for Light Box

incl. 2 bolts and wing nuts

(It needs drilling hole in the bottom profile)



Item no.: IS-9338

Total size: 100 (w) x 500 (l) x 6 (t) mm

Weight: 2350 grams

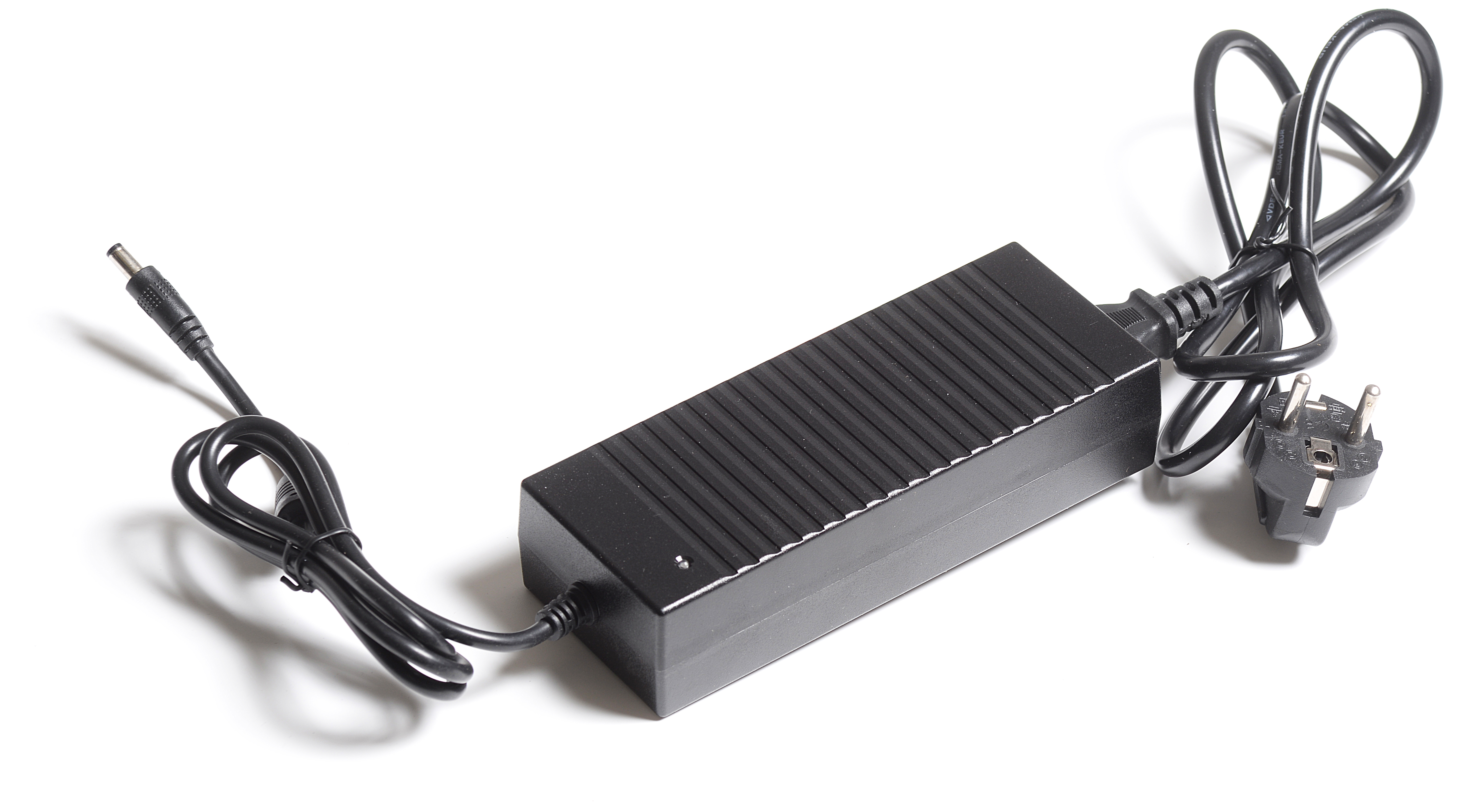

Transformer, 24V/150W

Jag har arbetat med fotografering sedan barnsben, först analogt senare tid digitalt. Min starkaste sida är porträtt men jag jobbar mycket med produkt-fotograferingar till de trycksaker och hemsidor jag arbetar med.



Item no.: IS-9381

Size:

Weight:

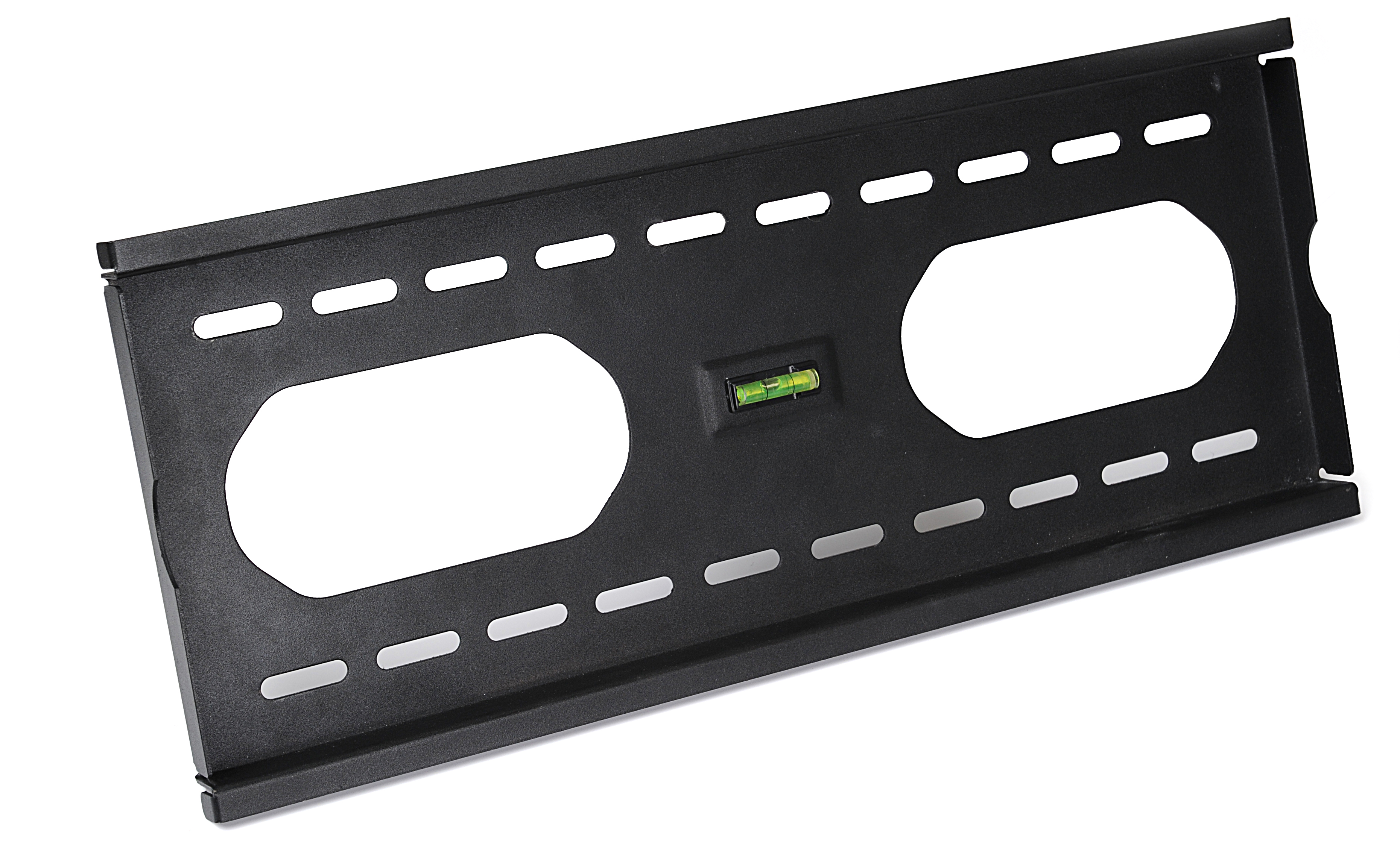

Media screen holder, large

with shot gun prifile as connector. To be attached to a support post.



Size: VESA 200/400

Weight: 1525 grams

Max load 20 kilo



Item no.: IS-9613



Media screen holder, small

Special with screw lock

Total size:  VESA75/100



Weight: 285 grams

Max load 8 kilo

Item IS-9041

Lightbox profile

single or double freestanding lightbox



Size: 120 x 30 x 3300 mm

Weight: 8646 grams (2620 g/m)

Item IS-9332

Fabric System Profile

double sided.



Size: 37 x 37 x 3300 mm

Weight: 3120 grams

Item IS-9097

Fabric Wall Profile

Single sided.



Total size: 29 x 20 x 3300 mm

Weight: 1881 grams (570 g/m)

Item IS-9331

90° Corner Profile

new model for Twist Lock Clamp



Size: 37 x 37 x 3100 mm

Weight: 750 grams/meter

Item IS-9375

Fabric Support Profile

for post and straight beam.



Total size: 37 x 37 x 3300 mm

Weight: 1875 grams

Item IS-3300-DP

Center connection profile

with two screws



Length: 150 mm

Weight: 45 grams

Item IS-150-CSC

Bags and cases

Padded bag on wheels (Wave)

Holds up to a 6 section Wave system



Inner size: 970 (l) x 320 (h) x 160 (d) mm

Weight: 5000 grams



Item IS-TC-01-MB

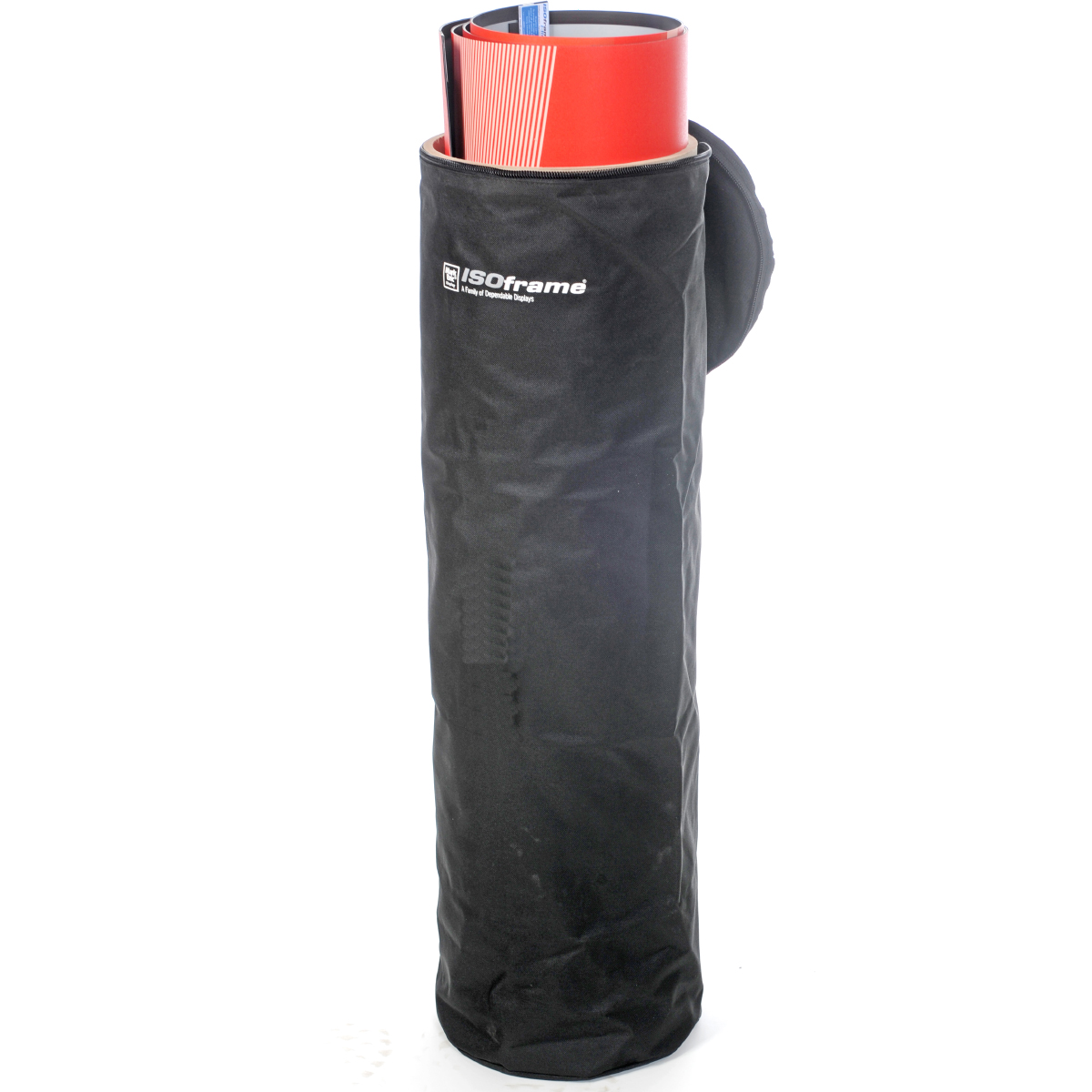

Graphic tube (small)

with handle. Can be connected to the

padded case on wheels.

Holds up to 6 graphic panels



Inner size: 900 (l) x 255 (Ø) mm

Weight: 2525 grams



Item IS-5061

Padded bag on wheels (Fabric)

Holds up 32 pcs. 1 metre Fabric profiles.



Inner size: 1100 (l) x 320 (h) x 160 (d) mm

Weight: 6150 grams





Item IS-TC-02-MB

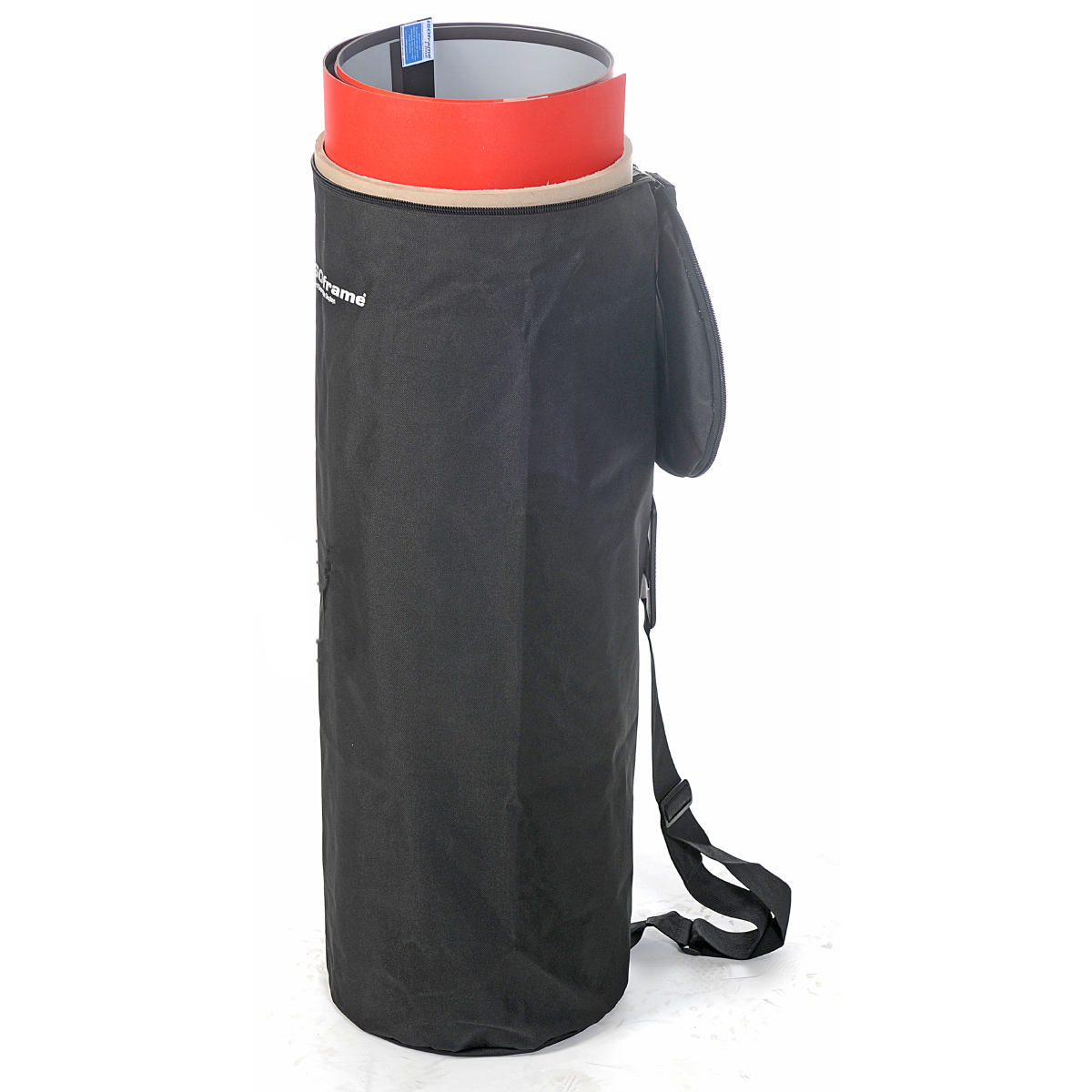

Graphic tube (large)

with handle and shoulder strap.

Holds up to 9 graphic panels



Inner size: 890 (l) x 297 (Ø) mm

Weight: 3580 grams



Item IS-5062

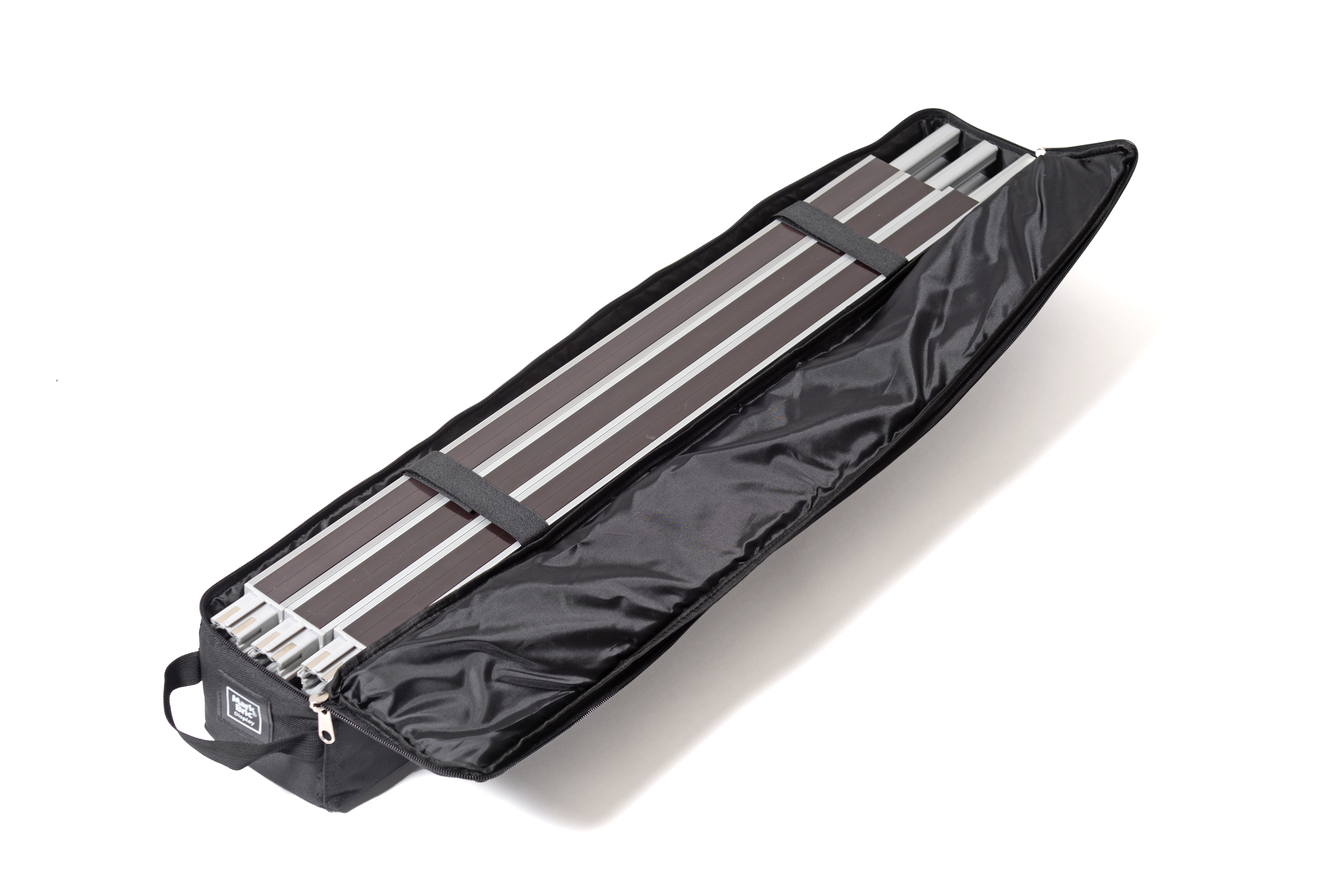

Bag for posts

with handle.

Holds 9 straight post



Inner size: 850 (l) x 120 (h) x 120 (d) mm

Weight: 320 grams

Weight packed with 9 post: 6720 grams



Item IS-5056

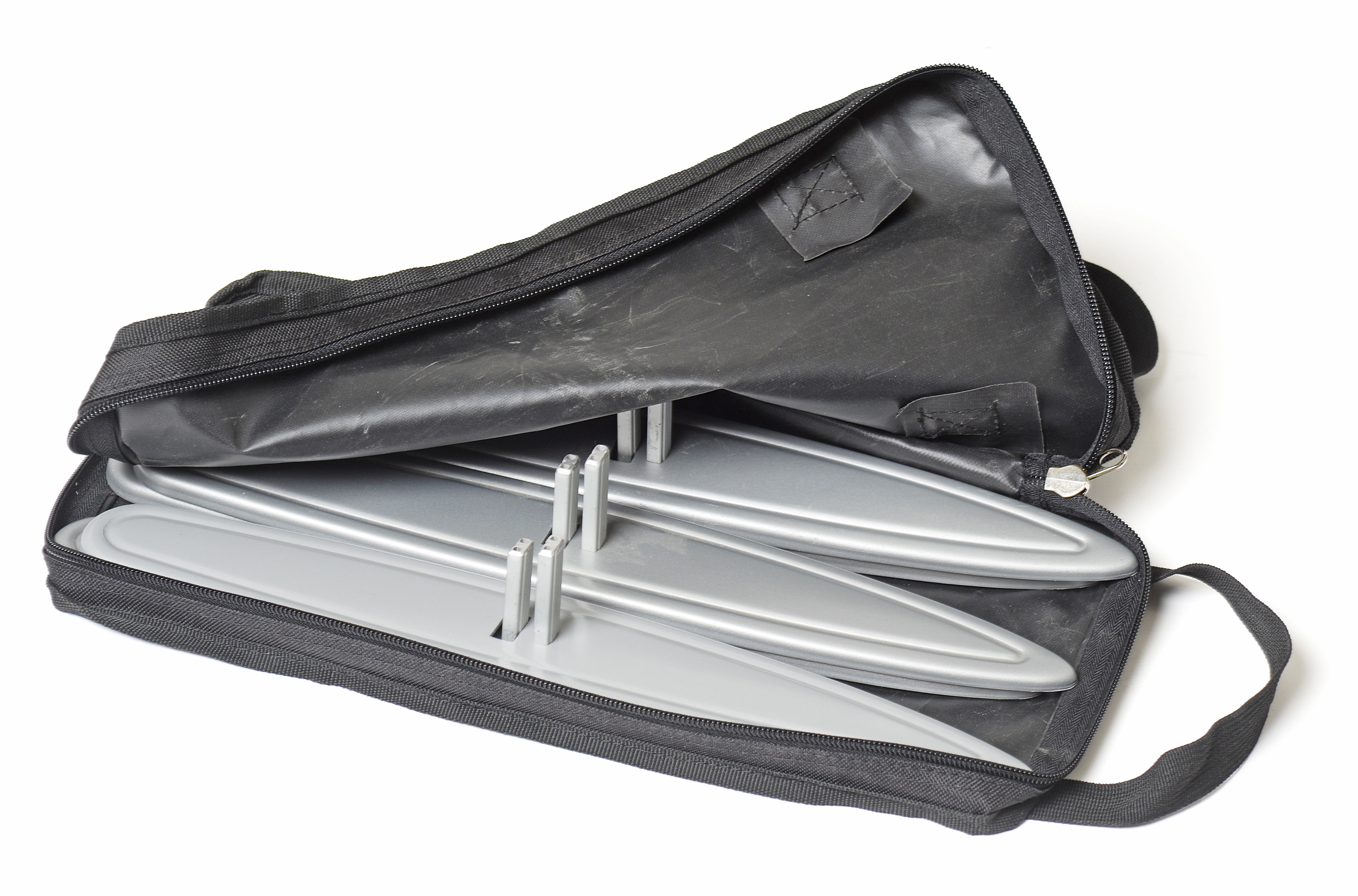

Bag for Wave feet

with handle, holds 6 Wave feets.



Inner size: 380 (l) x 170 (h) x 40 (d) mm

Weight: 155 grams

Weight packed with 6 feet; 2675 grams



Item IS-5055

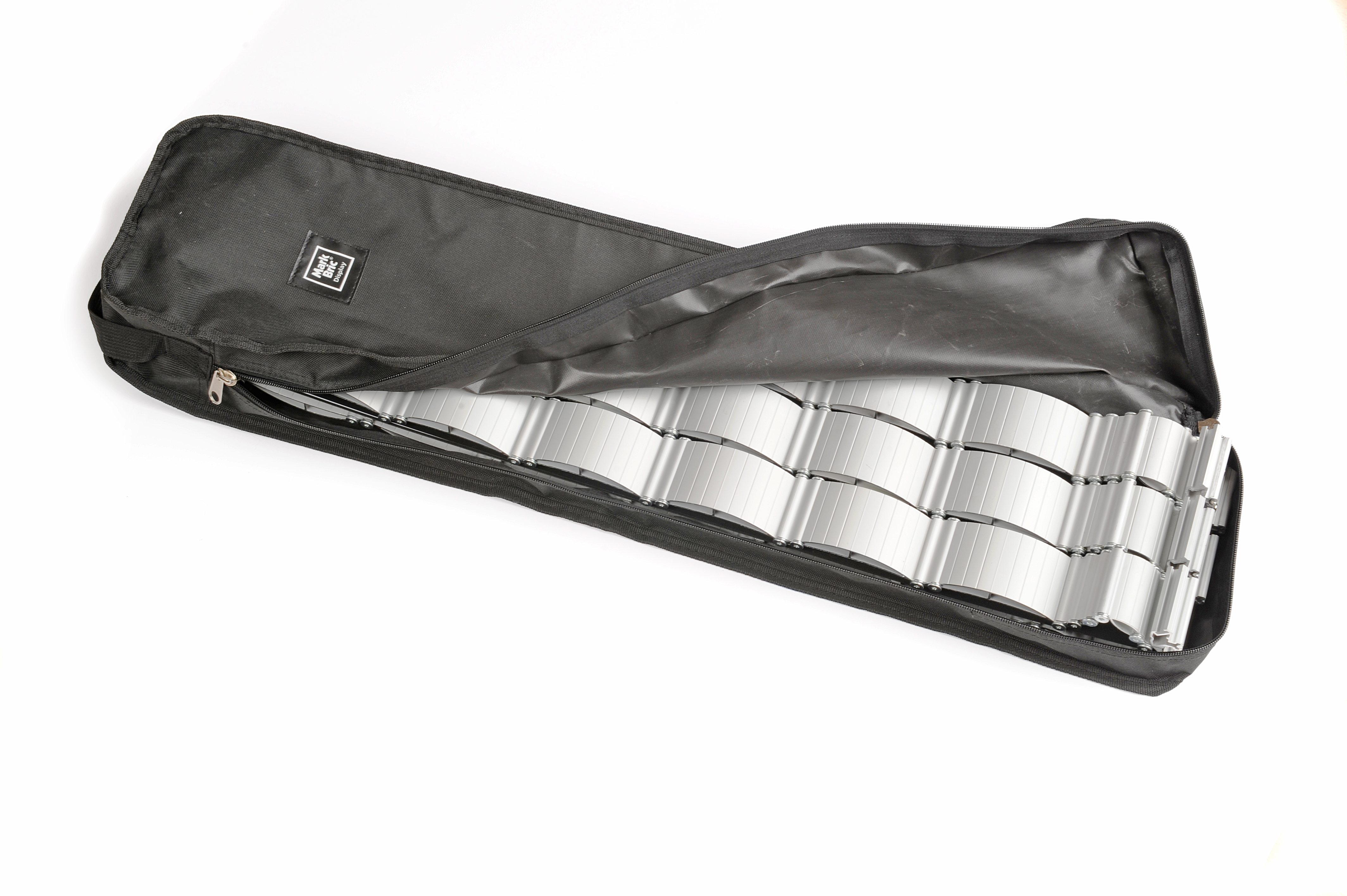

Bag for Wave links

with handle, holds 6 links or 8 straight

beams.



Inner size: 800 (l) x 170 (h) x 90 (d) mm

Weight: 265 grams

Weight packed with 6 links: 3910 grams



Item IS-5054

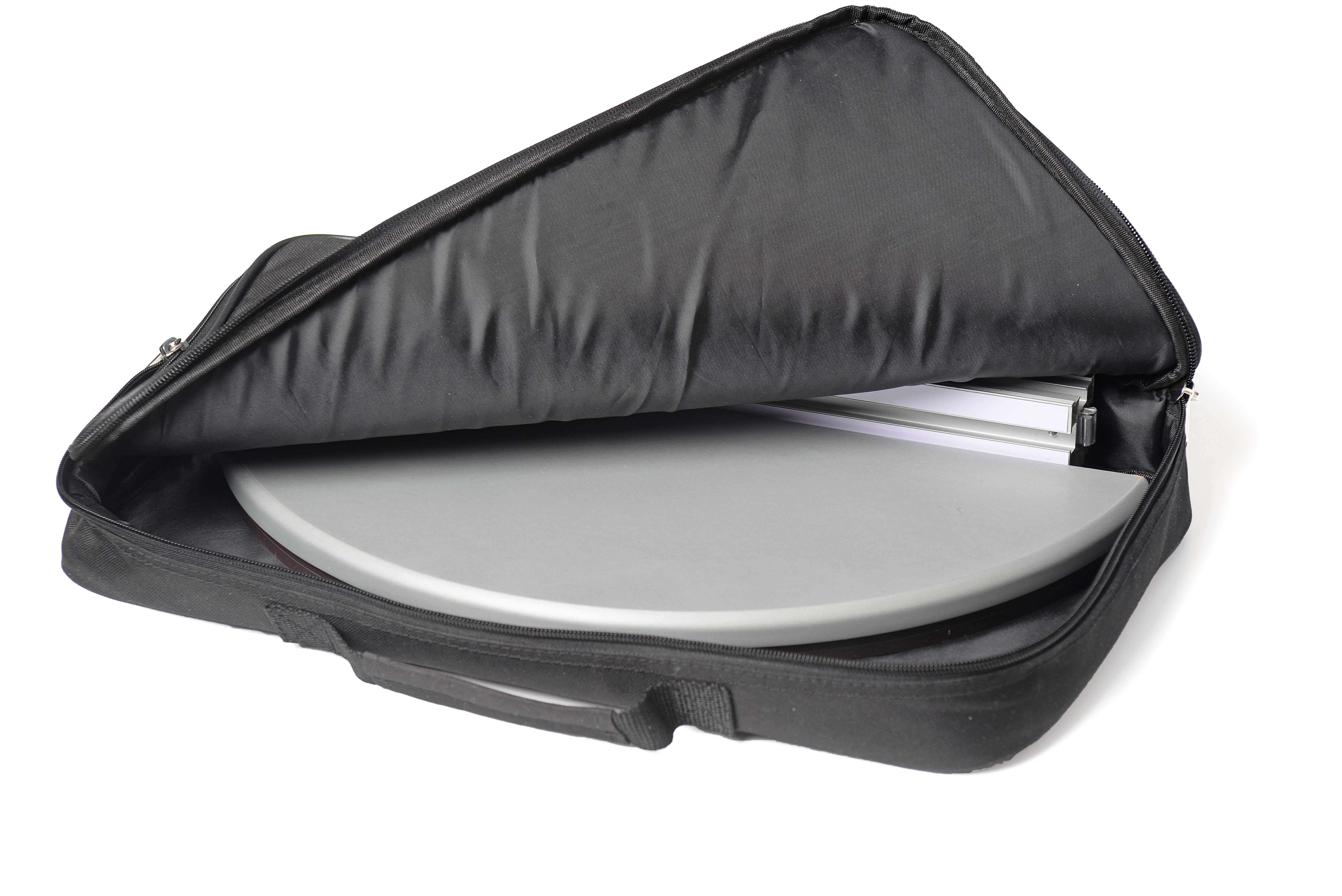

Bag for Floating shelf

with handle. Holds a 400 mm wide shelf

(IS-9616) or 9 pcs. of straight beam (IS-

400-BS) .



Inner size: 440 (w) x 250 (d) x 60 (h) mm

Weight: 265 grams



Item IS-5069

Bag for posts

with handle.

Holds 9 straight post



Inner size: 850 (l) x 120 (h) x 120 (d) mm

Weight: 320 grams

Weight packed with 9 post: 6720 grams



Item IS-5056
